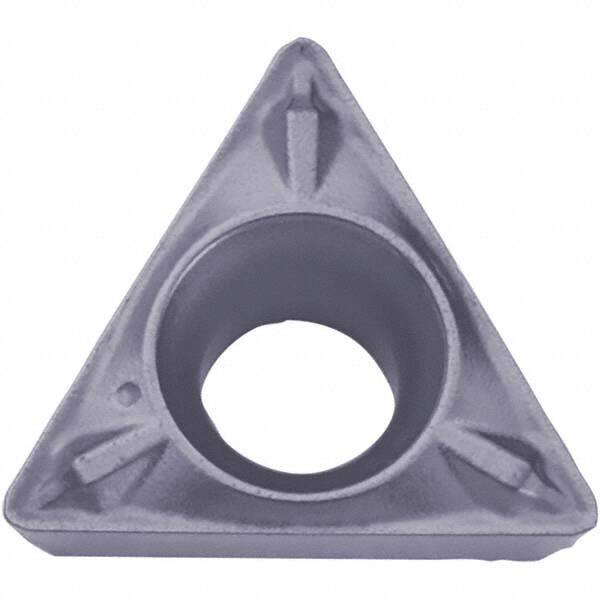

Kyocera - TCMX2151 WP Grade PR1725 Carbide Turning Insert
Item #: 11391109
Brand: Kyocera
Model #: 8863511
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMX |
| Insert Size | 2151 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Manufacturer's Grade | PR1725 |
| Coating | Megacoat Nano Plus |
| Chip Breaker | WP |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | TCMX110204WP |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | TCMX2151WP PR1725 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Material | Carbide |
| Corner Radius (Decimal Inch) | 1/64 |
| Coating Process | PVD |
| Coating | Megacoat Nano Plus |
| Material | Carbide |
| Manufacturer's Grade | PR1725 |
| Insert Style | TCMX |
| Insert Size | 2151 |
| Shape | Triangle |
| Coating Process | PVD |
| Coating | Megacoat Nano Plus |
| Material | Carbide |
| Manufacturer's Grade | PR1725 |
| Insert Style | TCMX |
| Insert Size | 2151 |
| Series | TCMX |
| Series | TCMX |
| Insert Hand | Neutral |
| Series | TCMX |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Wiper Edge |
| MultiUseTool | No |
| Shape | Triangle |
