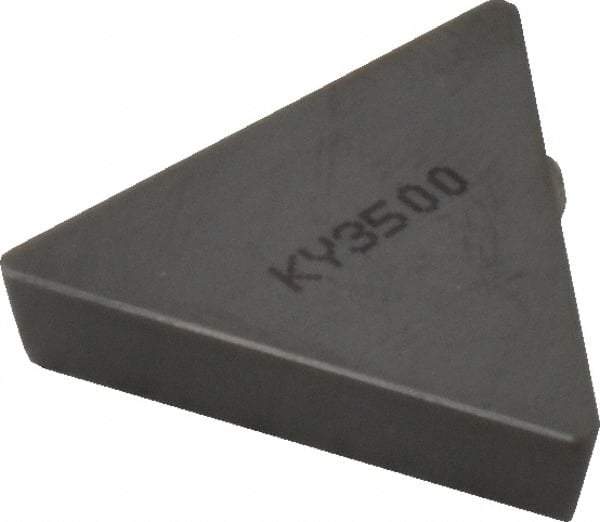

Kennametal - TPG432 Grade KY3500 Ceramic Milling Insert - Uncoated, 0.1874" Thick, 1/2" Inscribed Circle, 0.8mm Corner Radius
Item #: 78998812
Brand: Kennametal
Model #: 1183239
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 432 |
| Material | Ceramic |
| Material Grade | C2 |
| Manufacturer's Grade | KY3500 |
| Coating | Uncoated |
| Length (Decimal Inch) | 0.8661 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Neutral |
| ISO Number | TPGN220408T02020 |
