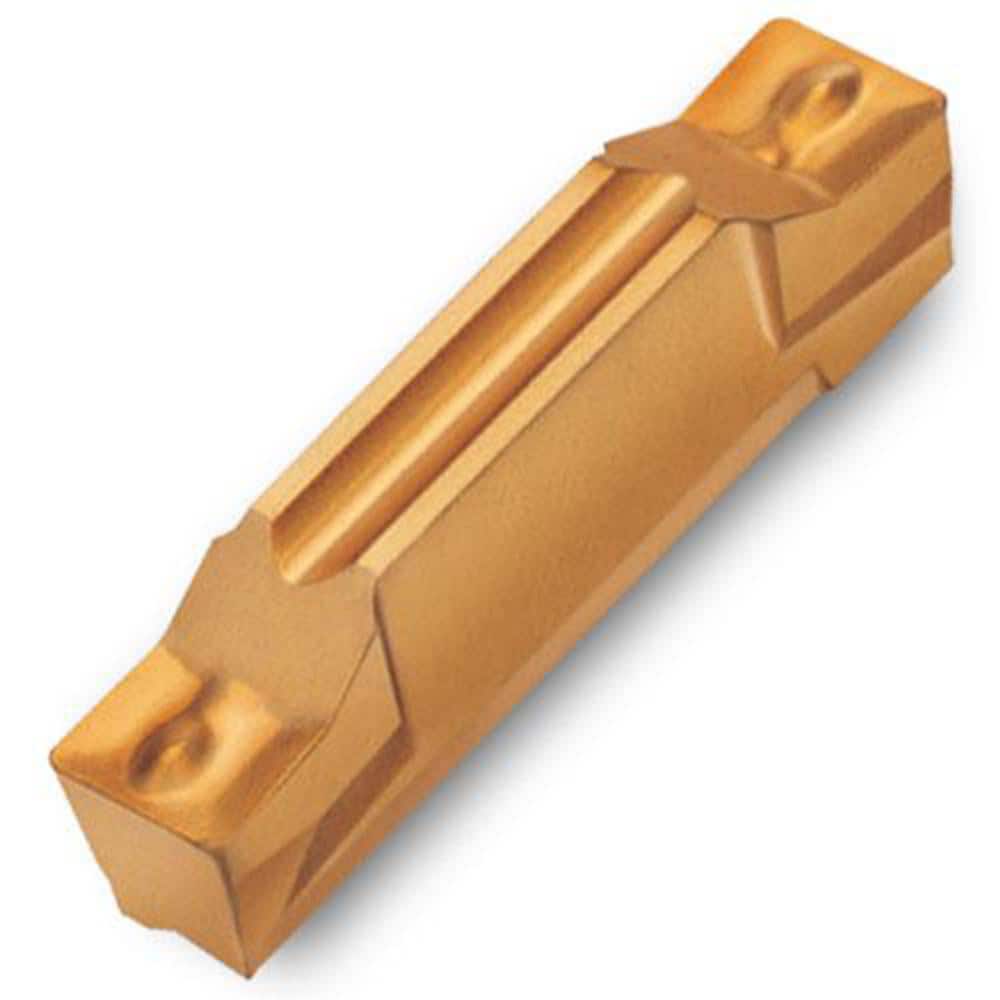

Grooving Insert: TDFTT TT5100, Solid Carbide TiN, TiCN, Al2O3 & TiN Finish, Right Hand, 0.118″ Cutting Width, Series TDFT-E
Item #: 78995461
Brand: Ingersoll Cutting Tools
Model #: 6400689
Product Specifications
| Insert Style | TDFT |
| Insert Size Code | 3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT5100 |
| Cutting Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Insert Hand | Right Hand |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 90 |
| Rake | Positive |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Series | TDFT-E |
| Coating Process | CVD |
| Overall Length (Decimal Inch) | 0.7900 |
| Overall Length (mm) | 0.79 |
| Primary Workpiece Material | Cast Iron |
| Chip Breaker | T |
| Coating/Finish | TiCN; TiN; Al2O3 |
