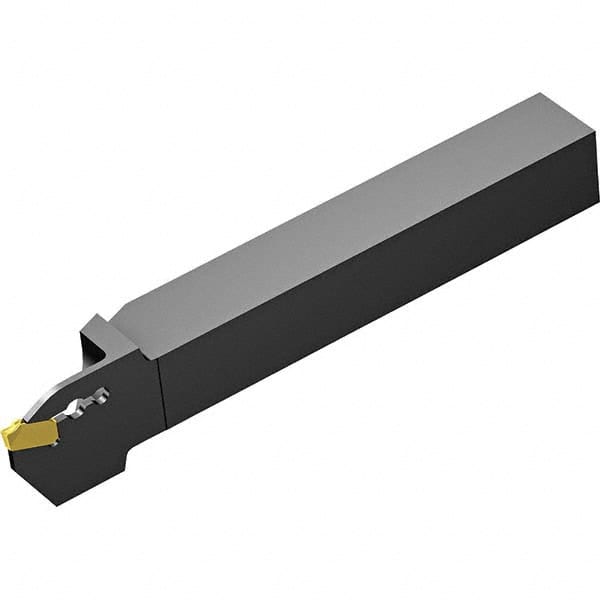

Sandvik Coromant - 13mm Max Depth, 0 to 1" Width, External Right Hand Nonface Grooving Toolholder
Item #: 38839627
Brand: Sandvik Coromant
Model #: 6976229
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Minimum Groove Width (Decimal Inch) | 0.0000 |
| Maximum Groove Width (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 1.0000 |
| Toolholder Style | QD-RF |
| Insert Compatibility | QD-NE |
| Shank Height (mm) | 10.00 |
| Shank Width/Diameter (mm) | 10.00 |
| Series | CoroCut QD |
| Through Coolant | Non Coolant Through |
| Insert Seat Size | E |
| Back of Bar to Cutting Edge (mm) | 127.00 |
| Head Height (mm) | 10.00 |
