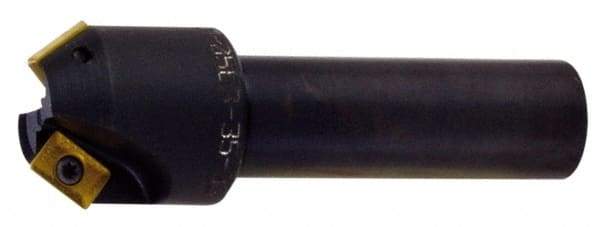

Kyocera - 10° Lead Angle, 1" Max Cut Diam, 1" Min Cut Diam, 0.577" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XPMT 15T3.. Insert Style, 3.15" Overall Length, Straight Shank
Item #: 78823796
Brand: Kyocera
Model #: 8600726
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Minimum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 10 |
| Overall Length (Decimal Inch) | 3.1500 |
| Insert Style | XPMT 15T3.. |
| Maximum Depth of Cut (Decimal Inch) | 0.5770 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Toolholder Style | CM |
| Head Length (Inch) | 1-1/4 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | No |
