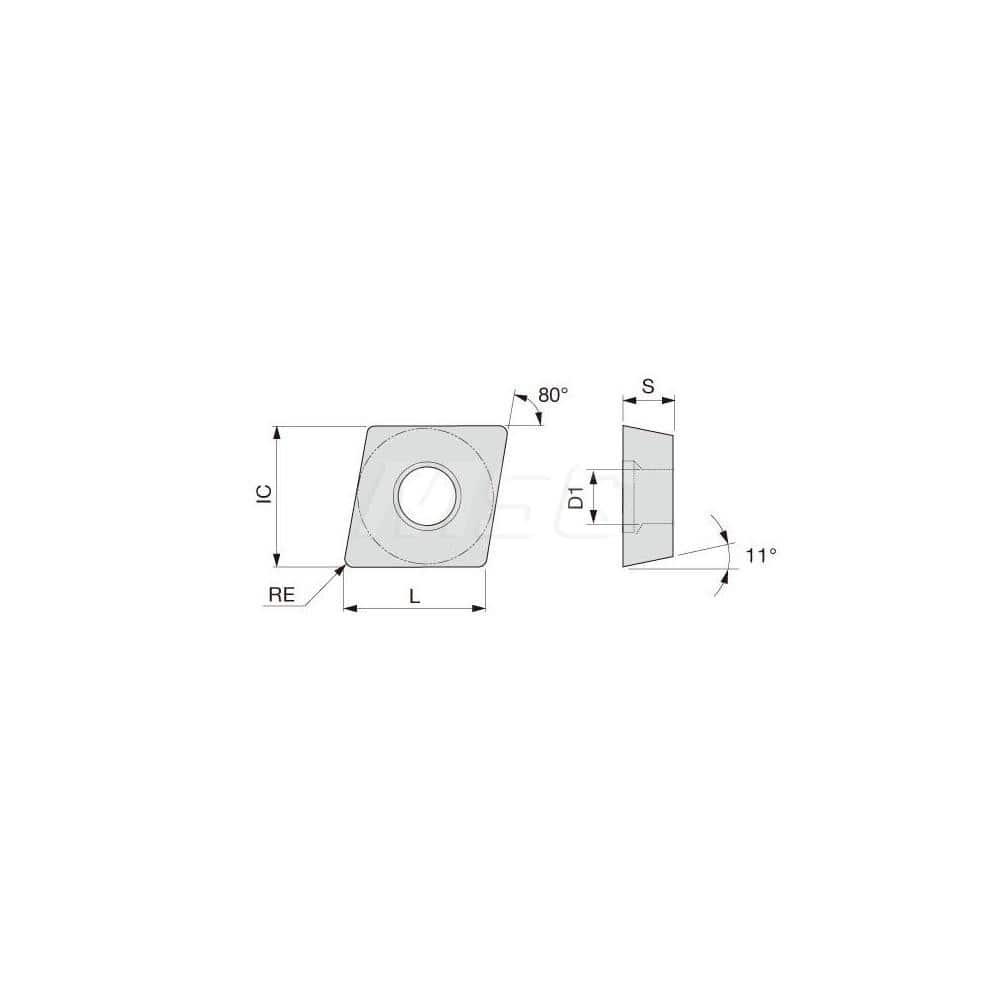

Turning Insert: CPMT32.51PSS AH725, Solid Carbide TiAlN Finish, Neutral, 3/8″ Inscribed Circle, 0.0160″ Corner Radius, 80.0 ° N/A Diamond, Series CPMT
Item #: 78764479
Brand: Tungaloy
Model #: 6864868
Product Specifications
| Insert Style | CPMT |
| Insert Size Code | 32.51 |
| Insert Shape | Diamond |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH725 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | CPMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | CPMT32.51PSSAH725 |
| Iso Code | CPMT09T304-PSS AH725 |
| Chip Breaker | PSS |
| Coating/Finish | TiAlN |
