Milling Insert: RDPX 1604MOS-HP WAN2225, WAN2225, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 78665080
Brand: Ceratizit
Model #: 56348251
Product Specifications
| Insert Style | RDPX |
| Insert Size Code | 1604 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | WAN2225 |

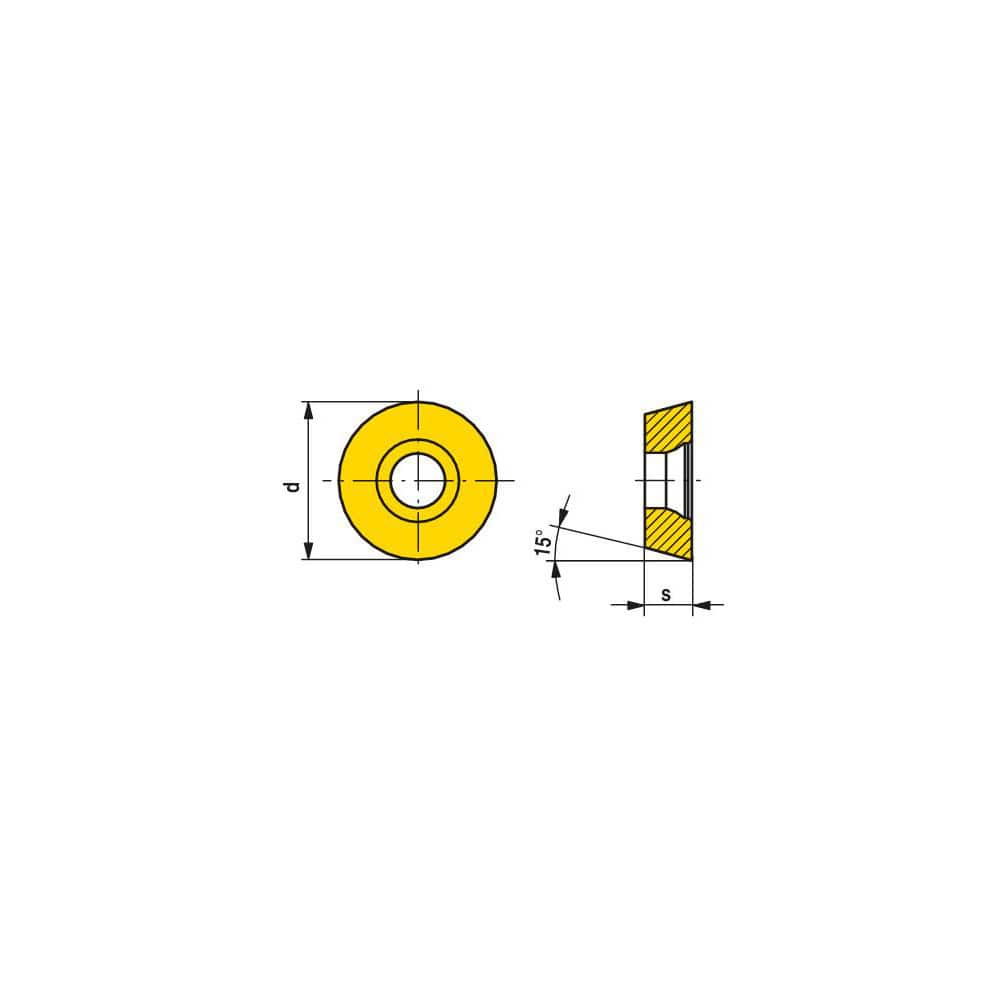

| Inscribed Circle (Decimal Inch) | 0.6299 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDPX |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3150 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Iso Code | RDPX 1604MOS-HP WAN2225 |
| Chip Breaker | HP |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
