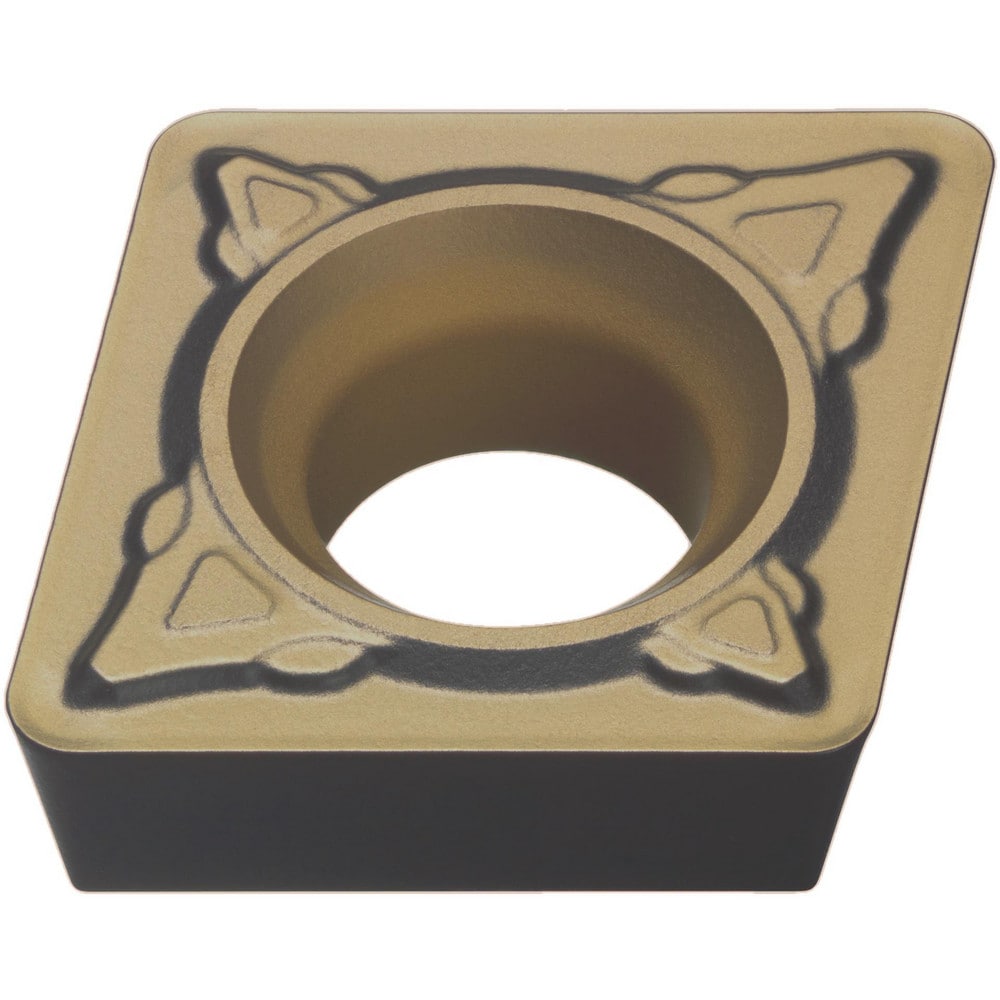

Turning Insert: CPMH320.5SV MC6025, Carbide
Item #: 01222371
Brand: Mitsubishi
Model #: 619428
Product Specifications
| ANSI Insert Code | CPMH320.5 |
| ISO Insert Code | CPMH090302 |
| Relief Angle | 11 |
| Insert Style | CPMH |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80 |
| Manufacturer Grade | MC6025 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.18 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Clearance Code | P |
| Tolerance Code | M |
| Primary Workpiece Material Code | P |
| Chip Breaker | SV |
| ANSI Size Code | 320.5 |
| ISO Size Code | 090302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3 |
