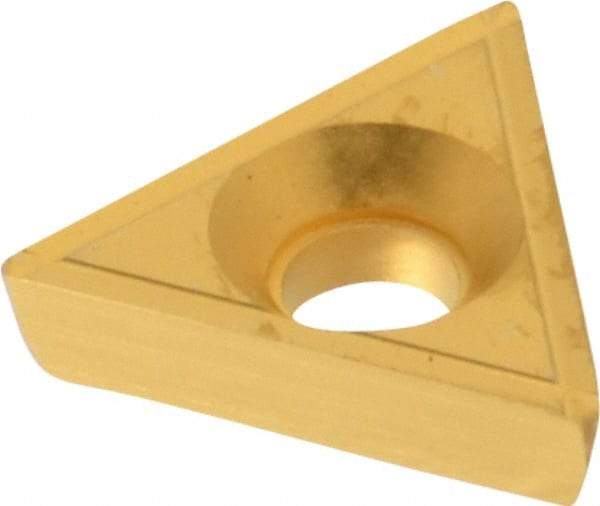

Value Collection - TPEG2.521 Grade ICC66 Carbide Turning Insert - TiN Finish, 60° Triangle, 5/16" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 78638269
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPEG |
| Insert Size | 2.521 |
| Material | Carbide |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | ICC66 |
| Coating | TiN |
| Material Grade | C6 |
| Hole Diameter (Decimal Inch) | 0.1250 |
| Relief Angle | 11 |
| Primary Workpiece Material | P; M |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
