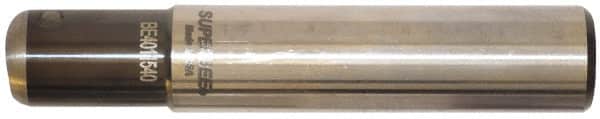

Superbee - 0.2 to 0.25 Inch Cutting Radius, 1 Inch Cutter Diameter, 2 Style EM15 Inserts, 1 Inch Shank Diameter, Indexable Convex Radius Cutter - 4.5 Inch Overall Length
Item #: 78623840
Brand: Superbee
Model #: BE6421564R4
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 1.0000 |
| Cutter Diameter (Inch) | 1 |
| Minimum Cutting Radius (Decimal Inch) | 0.2000 |
| Maximum Cutting Radius (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Toolholder Style | BE |
| Number of Cutter Inserts | 2 |
| Insert Style | EM15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Shank Type | Straight Shank |
| Through Coolant | NonThrough Coolant |
| Series | R4 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Complete Insert Compatibility | EM15200; EM15210; EM15220; EM15250 |
