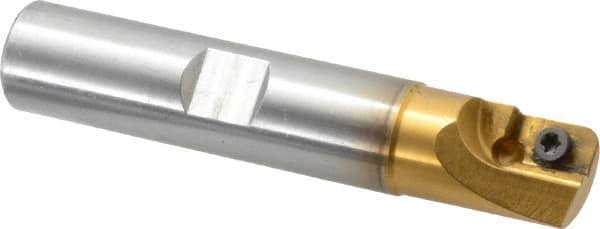

Superbee - 0.07 to 0.13 Inch Cutting Radius, 3/4 Inch Cutter Diameter, 1 Style EM15 Insert, 3/4 Inch Shank Diameter, Indexable Convex Radius Cutter - 4 Inch Overall Length
Item #: 78623261
Brand: Superbee
Model #: BE4811548R2
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 0.7500 |
| Cutter Diameter (Inch) | 3/4 |
| Minimum Cutting Radius (Decimal Inch) | 0.0700 |
| Maximum Cutting Radius (Decimal Inch) | 0.1300 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Toolholder Style | BE |
| Number of Cutter Inserts | 1 |
| Insert Style | EM15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Shank Type | Straight Shank |
| Through Coolant | NonThrough Coolant |
| Series | R2 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Head Length (Decimal Inch) | 1.2500 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Complete Insert Compatibility | EM15070; EM15080; EM15090; EM15100; EM15110; EM15120; EM15125; EM15130 |
