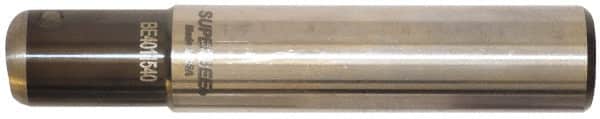

Superbee - 0.01 to 0.06 Inch Cutting Radius, 5/8 Inch Cutter Diameter, 1 Style EM 15 Insert, 5/8 Inch Shank Diameter, Indexable Concave Radius Cutter - 3.375 Inch Overall Length
Item #: 78621026
Brand: Superbee
Model #: BE4011540C1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutter Diameter (Decimal Inch) | 0.6250 |
| Cutter Diameter (Inch) | 5/8 |
| Minimum Cutting Radius (Decimal Inch) | 0.0100 |
| Maximum Cutting Radius (Decimal Inch) | 0.0600 |
| Insert Cutting Radius (Decimal Inch) | 0.0150 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Toolholder Style | BE |
| Number of Cutter Inserts | 1 |
| Insert Style | EM 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Through Coolant | NonThrough Coolant |
| Series | C |
| Overall Length (Decimal Inch) | 3.3750 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 1.0000 |
| Toolholder Material | Carbide |
| Complete Insert Compatibility | EM15 |
