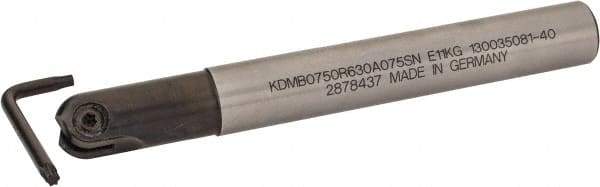

Kennametal - 3/4" Cut Diam, 3/8" Max Depth of Cut, 3/4" Shank Diam, 6.281" OAL, Indexable Ball Nose End Mill - 1.753" Head Length, Straight Shank, KDMB Toolholder, KDMB 0750.. Insert
Item #: 78584307
Brand: Kennametal
Model #: 2878437
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | KDMB 0750.. |
| Toolholder Style | KDMB |
| Overall Length (Decimal Inch) | 6.2810 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 1.7530 |
| Number of Side Inserts Used on Toolholder | 2 |
