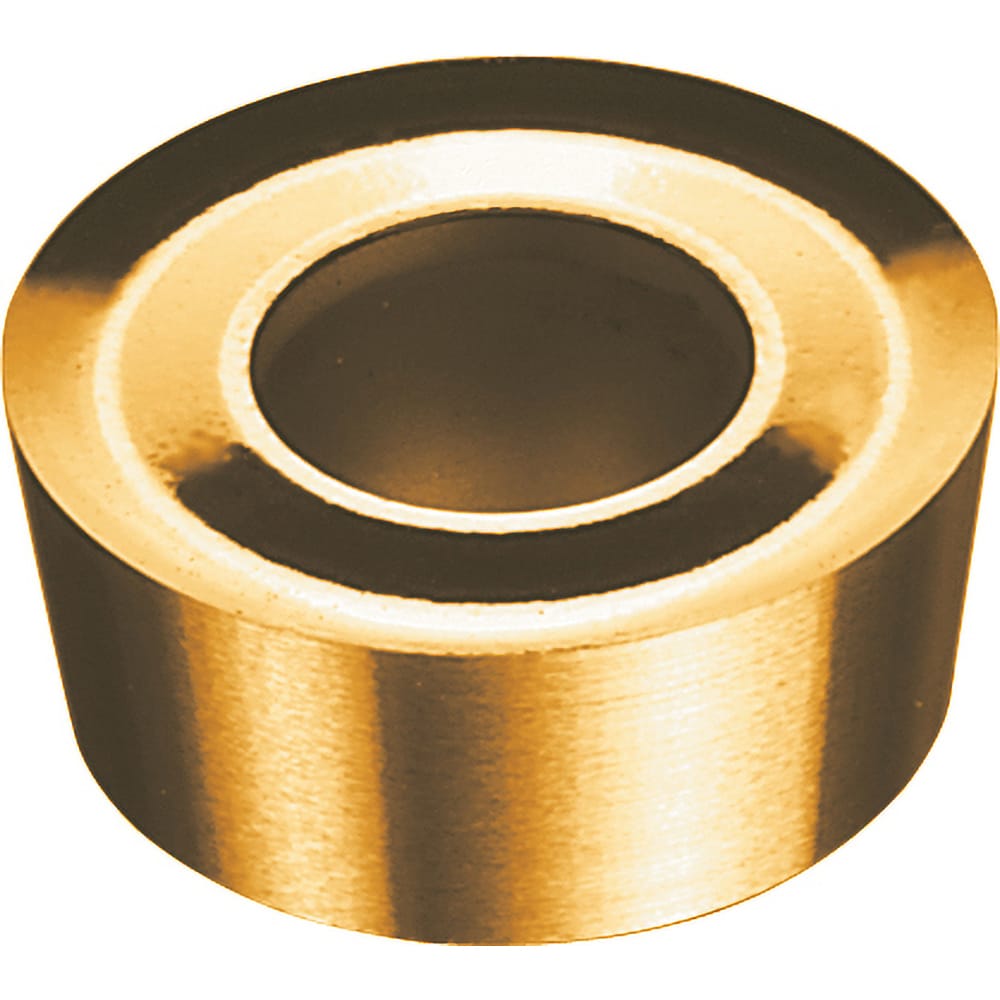

Turning Insert: RCGT0602MOFN-ALU AK10, Carbide
Item #: 77356343
Brand: Arno
Model #: 21732
Product Specifications
| ANSI Insert Code | RCGT21.5M0 |
| ISO Insert Code | RCGT0602M0 |
| Relief Angle | 7 |
| Insert Style | RCGT |
| Corner Radius (Decimal Inch) | 0.1181 |
| Included Angle | 360 |
| Manufacturer Grade | AK10 |
| Coating/Finish | Bright/Uncoated |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Series | RCGT |
| Inscribed Circle (Decimal Inch) | 0.2362 |
| Inscribed Circle (mm) | 6.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 2.8000 |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2362 |
| Insert Length (mm) | 6.00 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Iso Code | RCGT 0602MOFN-ALU |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 21732 |
| Material Grade | N25; N05 |
| Proprietary Coating Designation | Uncoated |
| Coating Classification | Uncoated |
| Chip Breaker | ALU |
| Cutting Edge Style | Sharp |
| Industry Standard Number | RCGT 0602MOFN-ALU |
| Width (Decimal Inch - 4 Decimals) | 0.2362 |
| Width (mm - 2 Decimals) | 6.00 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning |
| ANSI Size Code | 21.5M0 |
| ISO Size Code | 0602M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0602MO |
| Country of Origin | Luxembourg |
