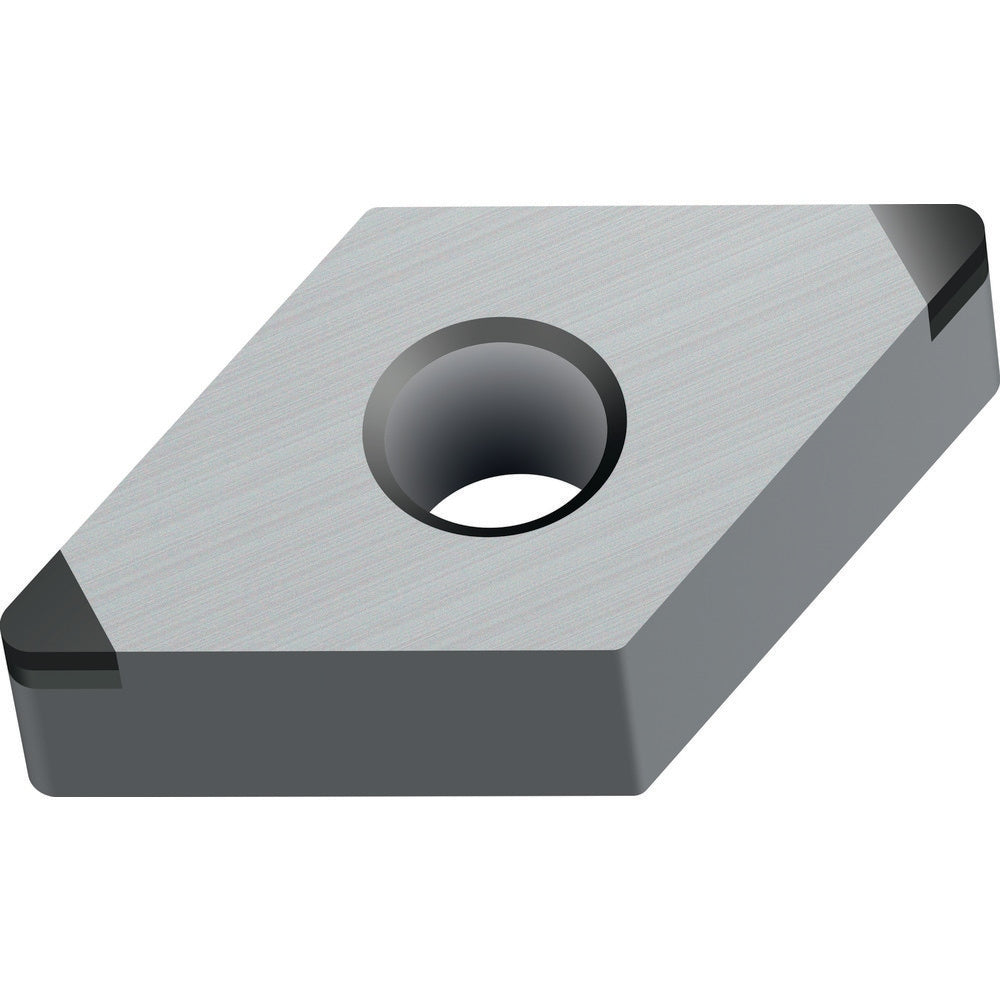

Turning Insert: DNGA442TM2 WBH30, CBN
Item #: 91741223
Brand: Walter
Model #: 8060971
Product Specifications
| ANSI Insert Code | DNGA442 |
| ISO Insert Code | DNGA150608 |
| Relief Angle | 0.000 |
| Insert Style | DNGA |
| Corner Radius (mm) | 0.80 |
| Included Angle | 55.00 |
| Manufacturer Grade | WBH30 |
| Coating/Finish | CBN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Series | DNGA |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | CBN |
| Insert Shape | Rhombic 55° |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| Maximum Depth of Cut (mm) | 1.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Length (mm) | 15.50 |
| Manufacturers Catalog Number | DNGA150608TM-2 WBH30 |
| Chip Breaker | TM |
| Width (mm - 2 Decimals) | 12.70 |
| ANSI Size Code | 442 |
| ISO Size Code | 150608 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 15 |
| Country of Origin | Germany |
