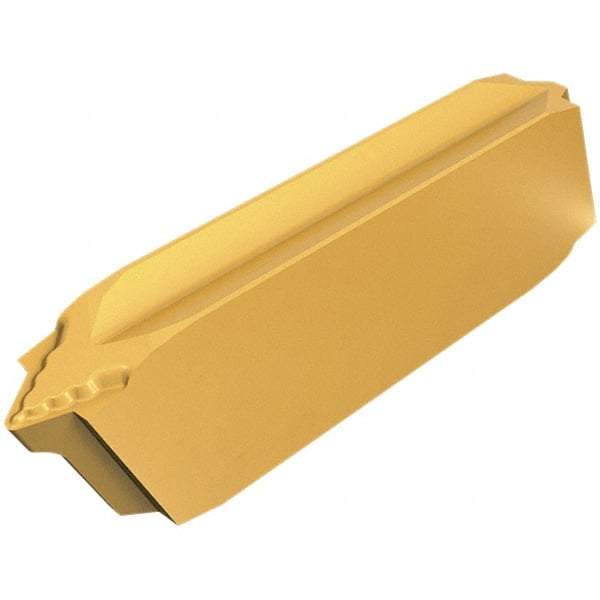

Iscar - TIP4P10 Grade IC808, External UN Threading Insert - 10 TPI Ext Pitch, TiAlN/AlTiN/TiN Finish, Carbide
Item #: 78289477
Brand: Iscar
Model #: 6404531
Exact Tooling IR#: 04
Features and Benefits
TiAlN, AlTiN, TiN is a multilayer coating that is abrasive-resistant and has a high hardness. Ideal for high speed applications and used for machining nickel alloys, stainless steel, titanium, cast iron and carbon steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIP |
| Insert Size | 4P10 |
| Thread Type | External |
| Thread Standard | UN |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| External Pitch/TPI | 10 TPI |
| Coating | TiAlN/AlTiN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.33 |
| Corner Radius (Decimal Inch) | 0.0130 |
| Width of Cutting Tip (mm) | 3.99 |
| Width of Cutting Tip (Decimal Inch) | 0.1570 |
| Series | Cut Grip; IscarThread |
| Included Angle of Threading Tip | 60 |
