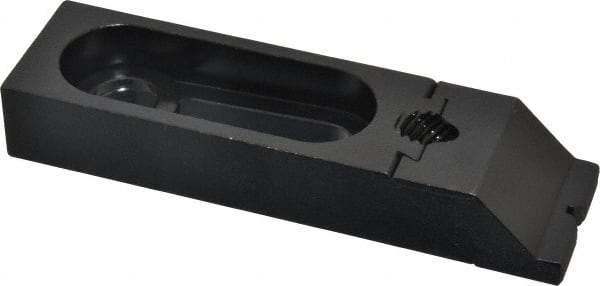

TE-CO - 5-5/16" OAL x 1-1/2" Overall Width, Low Grip Nose, Steel Manual Edge Clamp - Black Oxide Coating, 7/8" High, 5/8" Socket Cap Screw Slot, 2" Travel
Item #: 78202520
Brand: TE-CO
Model #: 33716
Exact Tooling IR#: 04
Features and Benefits
Clamps with a low nose grip provide more clearance when machining low profile or thin parts. The double action adjustable jaw provides an even clamping force horizontally and vertically.
| Product Specifications | |
|---|---|
| Grip Nose Style | Low |
| Overall Length (Inch) | 5-5/16 |
| Travel (Inch) | 2 |
| Width (Inch) | 1-1/2 |
| Height (Inch) | 7/8 |
| Socket Cap Screw Slot Size (Inch) | 5/8 |
| Material | Steel |
| Material Grade | 1018 |
| Finish/Coating | Black Oxide |
| Tapered Height (Inch) | 1/4 |
| Tapered Length (Inch) | 13/16 |
| End to Stud Center (Inch) | 7/8 |
