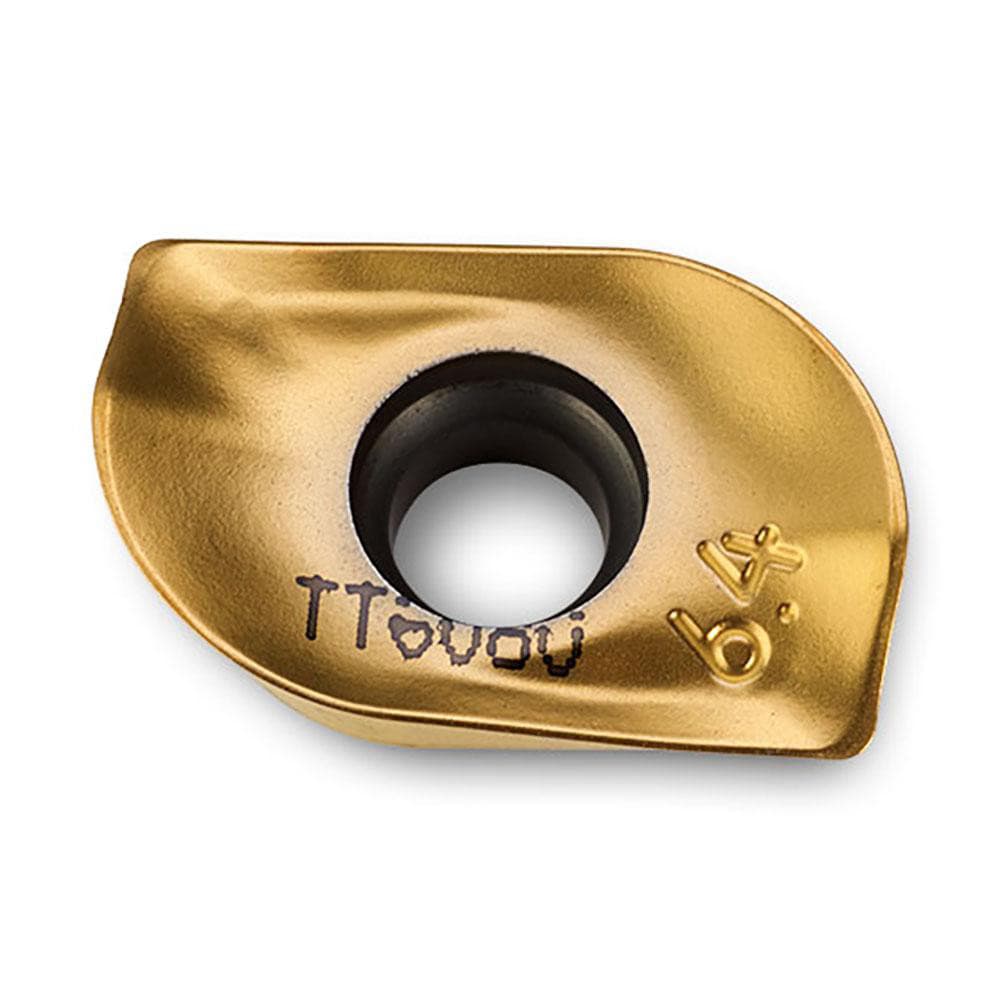

Milling Insert: AOMT170564R IN2005 IN2005, Solid Carbide
Item #: 84732189
Brand: Ingersoll Cutting Tools
Model #: 5873181
Product Specifications
| Insert Style | AOMT |
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | IN2005 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2180 |
| Coating/Finish | TiAlN |
| Insert Size Code | 170564 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.4210 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Inch) | 1/4 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Series | AOMT |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5950 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | AOMT170564R IN2005 |
| Iso Code | AOMT170564R IN2005 |
| Standards | ISO; ANSI |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5873181 |
| Cutter Series Compatibility | 22J5G; 12J1G; 22J3G; 2L1G; 2J1G; 12L1G |
| Chip Breaker | None |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4210 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6690 |
