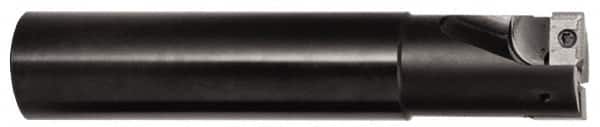

Tungaloy - 5/8" Cut Diam, 0.275" Max Depth of Cut, 5/8" Shank Diam, 7" OAL, Indexable Square Shoulder End Mill - XXMU 08 Inserts, Cylindrical Shank, 90° Lead Angle, Series Jetmill Multi X
Item #: 78070323
Brand: Tungaloy
Model #: 6843464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Inch) | 7 |
| Overall Length/Projection (Decimal Inch) | 7.0000 |
| Lead Angle | 90 |
| Series | Jetmill Multi X |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2750 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | EVX |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.6250 |
| Weldon Flat | No |
| Insert Compatibility | XXMU 08 |
| Shank Length (Decimal Inch) | 5.3750 |
