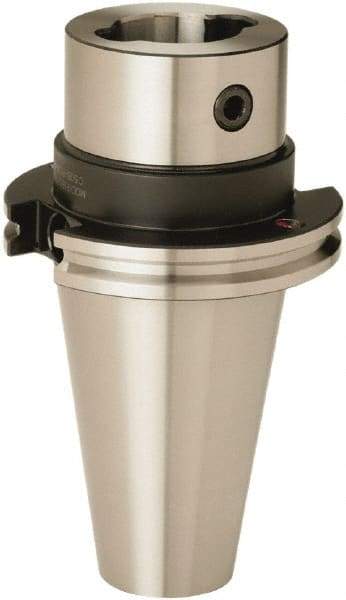

Parlec - PC3 Inside Modular Connection, Boring Head Taper Shank - Modular Connection Mount, 8.008 Inch Overall Length, 4 Inch Projection, 1.2205 Inch Nose Diameter
Item #: 77998342
Brand: Parlec
Model #: B50-PC3-4
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are mounted directly to the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Mount Type | Modular Connection |
| Inside Modular Connection Size | PC3 |
| Taper Size | BT50 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (mm) | 101.60 |
| Nose Diameter (mm) | 31.00 |
| Nose Diameter (Decimal Inch) | 1.2205 |
| Overall Length (Decimal Inch) | 8.0080 |
| Through Coolant | Yes |
