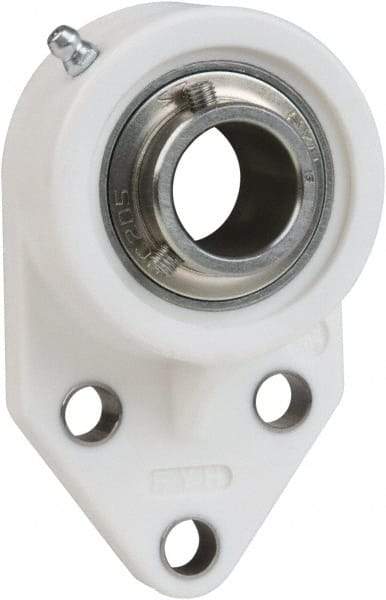

Value Collection - 1-1/4" ID, 5-15/32" OAL x 1-5/8" OAH 3 Bolt Flange Mounted Bearing - 2,540 Lb Static Cap, 4,383 Lb Dyn Cap, 1-7/8" Btw Mnt Hole Ctrs, 49/64" Base-to-Ctr Ht, Thermoplastic
Item #: 77915080
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 3 Bolt Flange Mounted Bearing |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Inch) | 3-1/4 |
| Width (Decimal Inch) | 3.2500 |
| Overall Length (Inch) | 5-15/32 |
| Overall Length (Decimal Inch) | 5.4688 |
| Overall Height (Inch) | 1-5/8 |
| Overall Height (Decimal Inch) | 1.6250 |
| Static Load Capacity (Pounds) | 2540.00 |
| Dynamic Load Capacity (Pounds) | 4383 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 1.8750 |
| Distance Between Mounting Hole Centers (Inch) | 1-7/8 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 0.7656 |
| Distance Between Base And Center (Inch) | 49/64 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
| Bolt Size (Decimal Inch) | 0.3750 |
