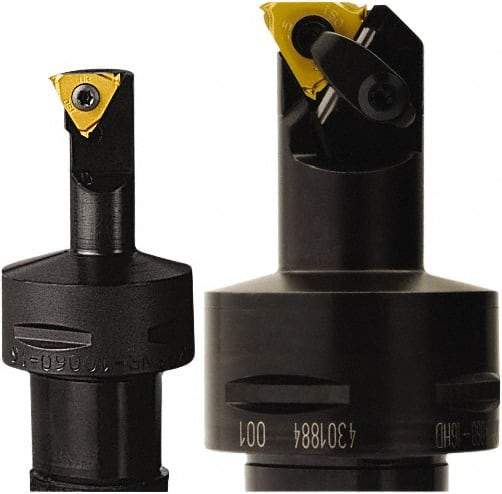

Seco - Internal Thread, Left Hand Cut, 50mm Shank Width x 50mm Shank Height Indexable Threading Toolholder - 16NL Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 77907699
Brand: Seco
Model #: 30443
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 50.00 |
| Shank Width/Diameter (Decimal Inch) | 1.9685 |
| Shank Height (mm) | 50.00 |
| Shank Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 16NL |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 19.80 |
| Center to Cutting Edge (Decimal Inch) | 0.7795 |
| Head Length (mm) | 68.00 |
| Head Length (Decimal Inch) | 2.6772 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
