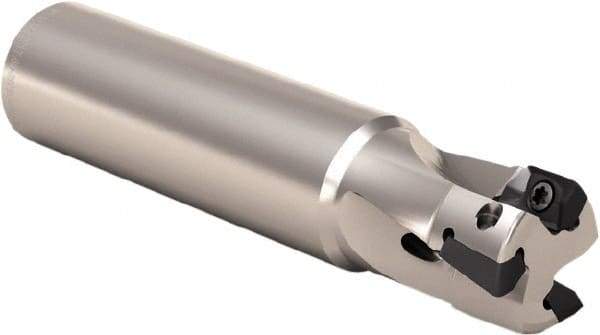

Seco - 20mm Cut Diam, 8mm Max Depth of Cut, 20mm Shank Diam, 90mm OAL, Indexable Square Shoulder End Mill - XO.. 0903.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Micro Turbo
Item #: 77906642
Brand: Seco
Model #: 53190
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 90.00 |
| Overall Length/Projection (Decimal Inch) | 3.5433 |
| Lead Angle | 90 |
| Series | Micro Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.. 0903.. |
| Shank Length (Decimal Inch) | 2.4016 |
| Shank Length (mm) | 61.00 |
| Maximum RPM | 29900 |
