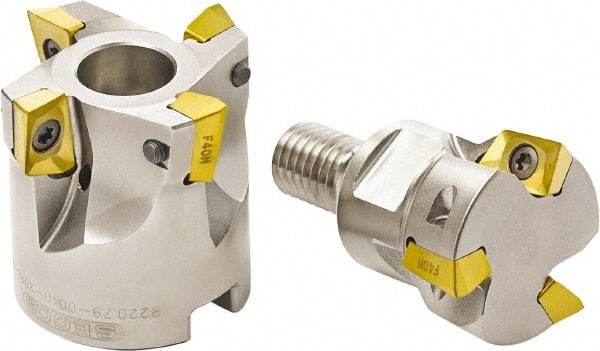

Seco - 94° Lead Angle, 32mm Min Cut Diam, 7mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, XO.. 1204.. Insert Style, Through Coolant, Modular Connection
Item #: 77906477
Brand: Seco
Model #: 63989
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | XO.. 1204.. |
| Toolholder Style | R217.79 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 1.2598 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Maximum RPM | 18400 |
