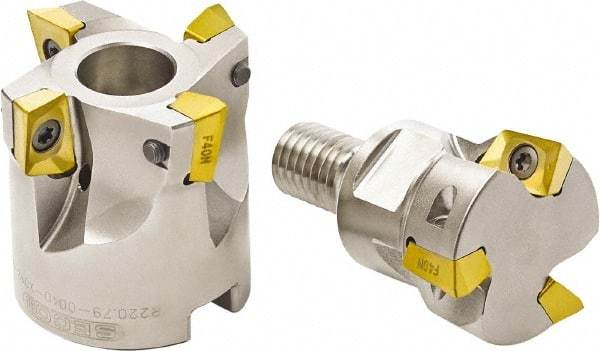

Seco - 94° Lead Angle, 25mm Min Cut Diam, 7mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 2 Inserts, XO.. 1204.. Insert Style, Through Coolant, Modular Connection
Item #: 77905289
Brand: Seco
Model #: 63986
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | XO.. 1204.. |
| Toolholder Style | R217.79 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 0.9843 |
| Weldon Flat | No |
| Through Coolant | Yes |
| Maximum RPM | 20800 |
