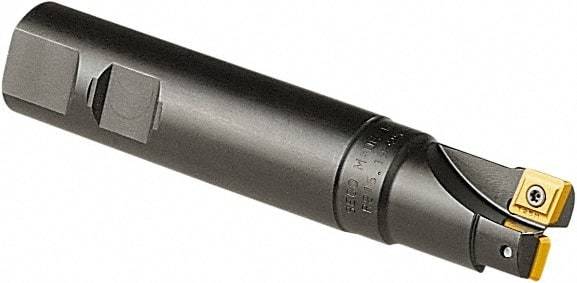

Seco - 20mm Cut Diam, 7mm Max Depth of Cut, 20mm Shank Diam, 120mm OAL, Indexable Square Shoulder End Mill - CC.. 0803, SPMX 0602 Inserts, Weldon Shank, 90° Lead Angle
Item #: 77905065
Brand: Seco
Model #: 02630
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 1 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Weldon Flat | Yes |
| Insert Compatibility | CC.. 0803; SPMX 0602 |
| Shank Length (Decimal Inch) | 2.7559 |
| Shank Length (mm) | 70.00 |
| Maximum RPM | 22800 |
