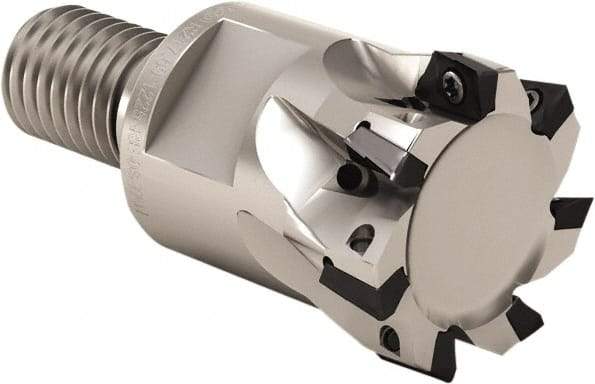

Seco - 16mm Cut Diam, 5mm Max Depth of Cut, 23mm OAL, Indexable Square Shoulder End Mill - XO.. 0602 Inserts, M8 Modular Connection, 90° Lead Angle, Through Coolant, Series Nano Turbo
Item #: 77904753
Brand: Seco
Model #: 53213
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Overall Length/Projection (mm) | 23.00 |
| Overall Length/Projection (Decimal Inch) | 0.9055 |
| Lead Angle | 90 |
| Series | Nano Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Weldon Flat | No |
| Insert Compatibility | XO.. 0602 |
| Maximum RPM | 48000 |
