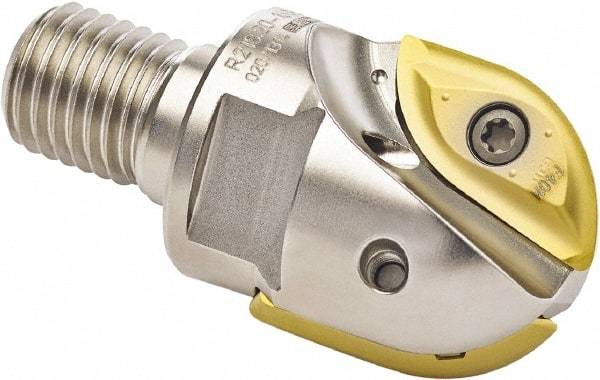

Seco - 16mm Cut Diam, 14mm Max Depth of Cut, Indexable Ball Nose End Mill - 23mm Head Length, M08 Modular Connection, R218.20 Toolholder, 218.20 080 Insert
Item #: 77901494
Brand: Seco
Model #: 65036
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M08 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20 080 |
| Toolholder Style | R218.20 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Maximum RPM | 28500 |
