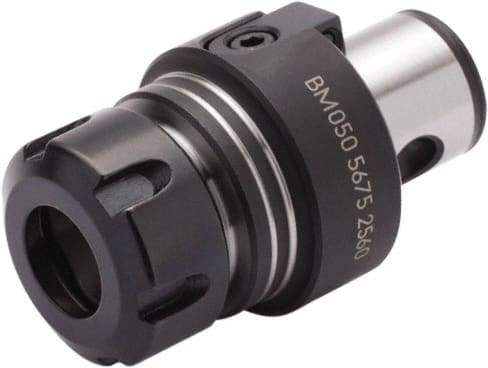

Seco - 0.039" to 0.63" Capacity, 60mm Projection, Modular Connection, ER25 Collet Chuck - Through-Spindle
Item #: 77899979
Brand: Seco
Model #: 66094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Modular Connection |
| Modular Connection Size | Graflex 6 |
| Projection (mm) | 60.00 |
| Projection (Decimal Inch) | 2.3622 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0390 |
| Maximum Collet Capacity (Decimal Inch) | 0.6300 |
| Nose Diameter (Decimal Inch) | 1.6540 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.6540 |
