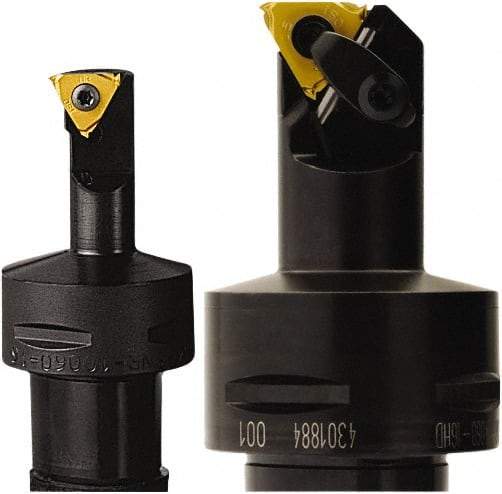

Seco - Internal Thread, Left Hand Cut, 40mm Shank Width x 40mm Shank Height Indexable Threading Toolholder - 300mm OAL, 16NL Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 77896009
Brand: Seco
Model #: 30410
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (Decimal Inch) | 11.8110 |
| Overall Length (mm) | 300.00 |
| Insert Compatibility | 16NL |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 14.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length (mm) | 60.00 |
| Head Length (Decimal Inch) | 2.3622 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3752 |
