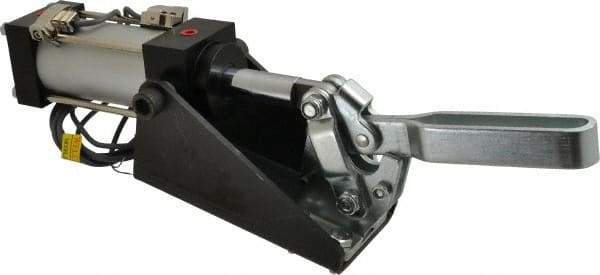

Gibraltar - 800 Lb Inner Hold Capacity, Vert Mount, Air Power Hold-Down Toggle Clamp - 1/8 NPT Port, 95° Bar Opening, 2-1/4" Height Under Bar
Item #: 77863520
Brand: Gibraltar
Exact Tooling IR#: 04
Features and Benefits
Vertical mounts are designed with the toggle at 90 degrees. The cylinder is mounted in either a vertical position or a position that is perpendicular to the clamping bar.
| Product Specifications | |
|---|---|
| Power Type | Pneumatic |
| Mounting Orientation | Vertical |
| Holding Capacity - Inner (Lb.) | 800 |
| Height Under Bar (Decimal Inch) | 2.2500 |
| Port Size | 1/8 NPT |
| Bar Opening (Degrees) | 95.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.7800 |
| Bar Extension (Decimal Inch) | 4.8800 |
| Overall Closed Height (Decimal Inch) | 3.78 |
| Air Requirement (psi) | 20 to 130 |
| Mounting Hole Size (Decimal Inch) | 0.3400 |
| Bar Style | U-Bar |
| Includes | Magnetic Ring |
