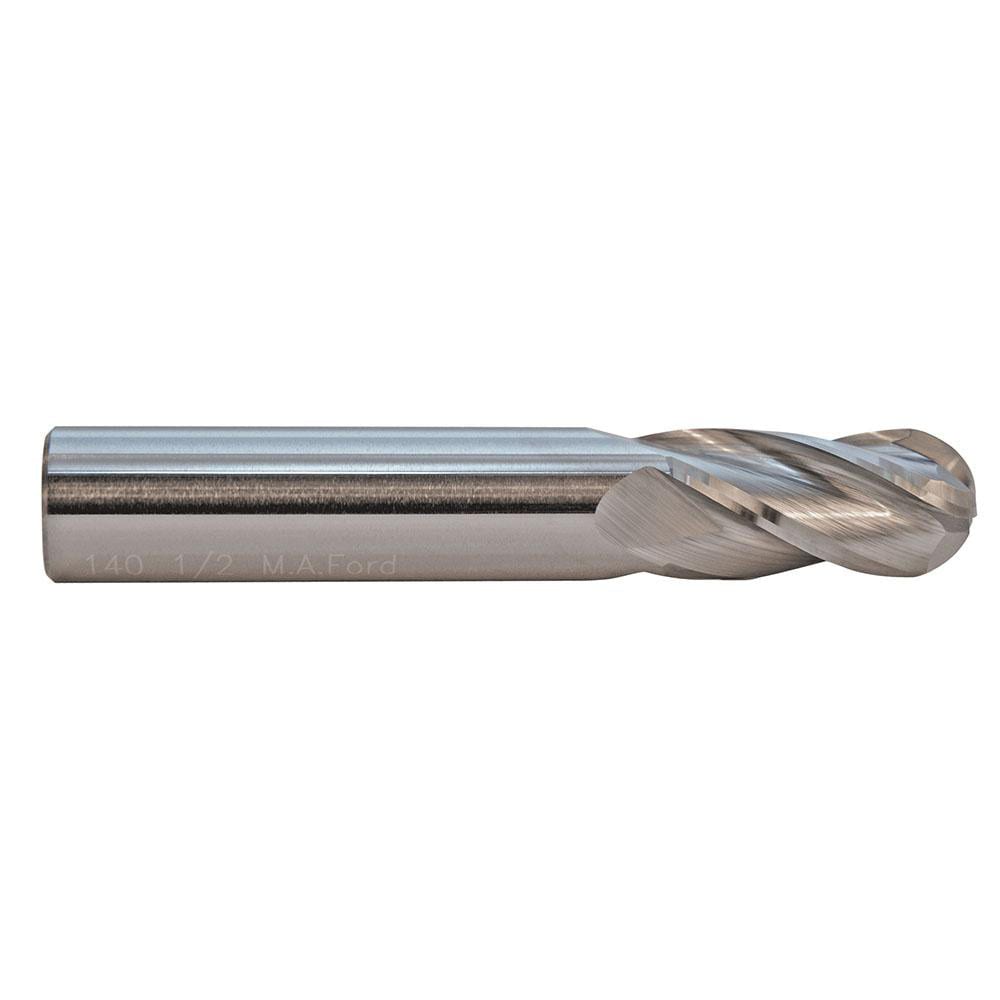

Ball End Mill: 1/4" Dia, 3/4" LOC, 4 Flute, Solid Carbide
Item #: 71914550
Brand: M.A. Ford
Model #: 14025000T
Product Specifications
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/4 |
| Coating/Finish | TiN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Nose Radius (Decimal Inch) | 0.1250 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 140 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Mill Diameter (Inch) | 1/4 |
| Mill Diameter (Decimal Inch) | 0.2500 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 3/4 |
| Coating/Finish | TiN |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 1/4 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Nose Radius (Decimal Inch) | 0.1250 |
| Mill Diameter Tolerance | +0.000/-0.002 in |
| Maximum Helix Angle | 30 |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 140 |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Single Or Double End | Single |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| MSC Part # | 71914550 |
| Mfr Part # | 14025000T |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
