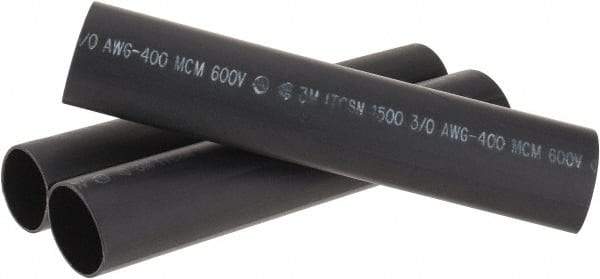

3M - 9" Long, 4:1, Polyolefin Heat Shrink Electrical Tubing - Black
Item #: 77654564
Brand: 3M
Model #: 00051128600818
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tubing Style | Heat Shrink |
| Material | Polyolefin |
| Shrink Ratio | 4:1 |
| Overall Length (Decimal Inch) | 9 |
| Maximum Compatible Wire Size (sq mm) | 185 |
| Minimum Compatible Wire Size (sq mm) | 95 |
| Minimum Compatible Wire Size (AWG) | 3/0 |
| Color | Black |
| Inside Diameter Before Shrinking (mm) | 38.10 |
| Inside Diameter Before Shrinking (Inch) | 1-1/2 |
| Inside Diameter Before Shrinking (Decimal Inch) | 1-1/2 |
| Inside Diameter After Shrinking (Decimal Inch) | 1/2 |
| Inside Diameter After Shrinking (mm) | 12.70 |
| Shrink Temperature (F) | 249.80 |
| Resistance Features | Abrasion Resistant; Acid Resistant; Alkali Resistant; Corrosion Resistant; Fluid Resistant; Fungus Resistant; Puncture Resistant; Split Resistant; UV Resistant; Weather Resistant |
| Maximum Operating Temperature (F) | 230 |
| Minimum Operating Temperature (F) | -67 |
| Standards Met | CSA File LR86335 Certified; UL 486D; UL Listed File E102356 |
