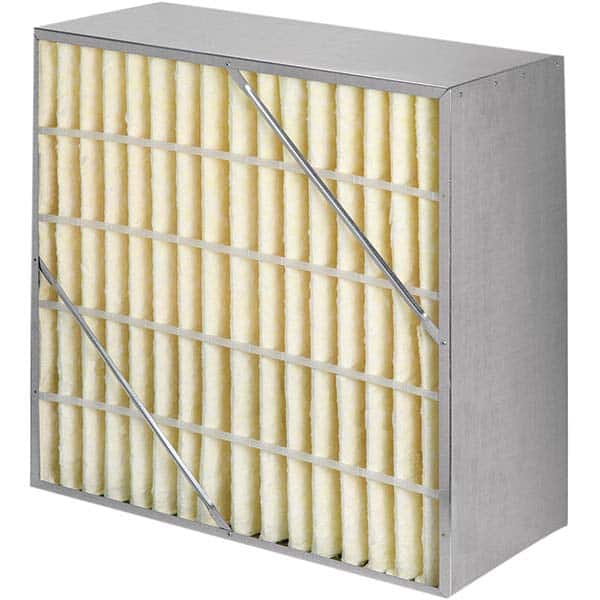

PRO-SOURCE - Pleated & Panel Air Filters Filter Type: Rigid Cell Nominal Height (Inch): 24
Item #: 14275648
Brand: PRO-SOURCE
Model #:
Product Specifications
Pleated & Panel Air Filters; Filter Type: Rigid Cell ; Nominal Height (Inch): 24 ; Nominal Width (Inch): 20 ; Nominal Depth (Inch): 12 ; MERV Rating: 10 ; Media Material: Fiberglass
| Filter Type | Rigid Cell |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 20 |
| Nominal Depth (Inch) | 12 |
| MERV Rating | 10 |
| Media Material | Fiberglass |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 23.380 |
| Actual Width (Decimal Inch) | 19.380 |
| Actual Depth (Inch) | 11.375 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 500 |
| Initial Resistance at FPM (Inches w.g.) | 0.12 (at 250 FPM); 0.23 (at 375 FPM); 0.37 (at 500 FPM); 0.52 (at 625 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 180.000 |
| Frame Material | Galvanized Steel |
| Standards Met | UL 900 |
