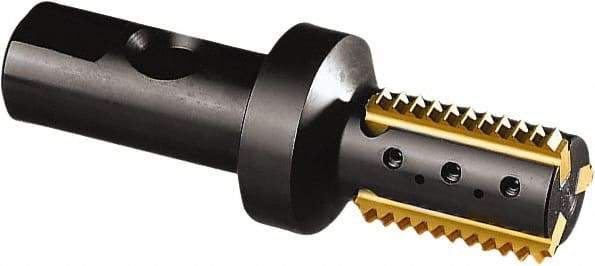

Seco - 12mm Cut Diam, 13mm Max Hole Depth, 20mm Shank Diam, Indexable Thread Mill - 13mm Insert Size, 1 Insert, Toolholder Style R396.18, 105mm OAL
Item #: 77492478
Brand: Seco
Model #: 36662
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Maximum Hole Depth (mm) | 13.00 |
| Maximum Hole Depth (Decimal Inch) | 0.5118 |
| Insert Size (mm) | 13.00 |
| Insert Size (Decimal Inch) | 0.5118 |
| Toolholder Style | R396.18 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 105.00 |
| Overall Length (Decimal Inch) | 4.1339 |
| Number of Threading Inserts | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
