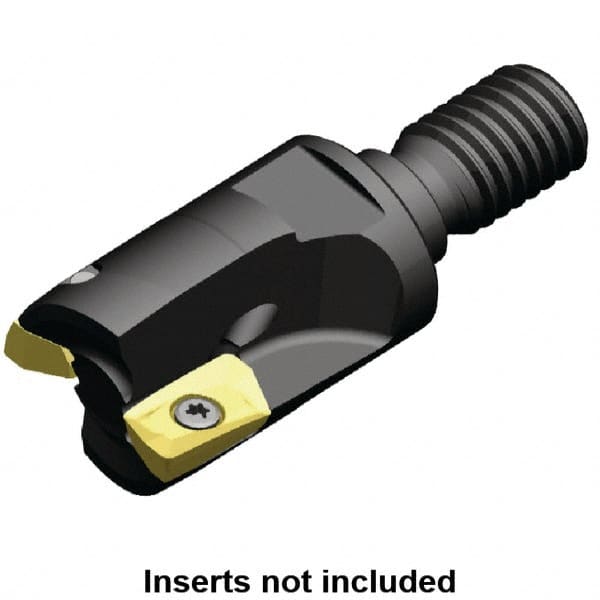

Kennametal - 16mm Cut Diam, 10.1mm Max Depth of Cut, 25mm OAL, Indexable Square Shoulder End Mill - EC10.., EP10.. Inserts, M8 Modular Connection, 0° Lead Angle, Through Coolant
Item #: 77460806
Brand: Kennametal
Model #: 3745708
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 16.00 |
| Cutting Diameter (Decimal Inch) | 0.6300 |
| Shank Type | Modular Connection |
| Modular Connection Size | M8 |
| Overall Length/Projection (mm) | 25.00 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.3979 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1-10 |
| Number of Flutes | 2 |
| Insert Compatibility | EC10.., EP10.. |
| Maximum RPM | 51000 |
