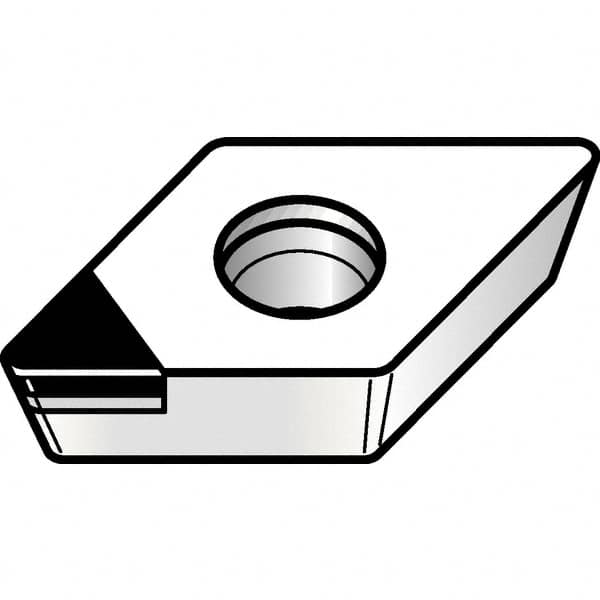

Kennametal - DPGW32.51 FW Grade KD1425 Polycrystalline Diamond (PCD) Turning Insert - 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.007" Corner Radius
Item #: 77456176
Brand: Kennametal
Model #: 3660015
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | DPGW |
| Insert Size | 32.51 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 11.59 |
| Length (Decimal Inch) | 0.4563 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Manufacturer's Grade | KD1425 |
| Material Grade | C4 |
| Chip Breaker | FW |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Rake | Positive |
| Relief Angle | 11 |
| Included Angle | 55 |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
