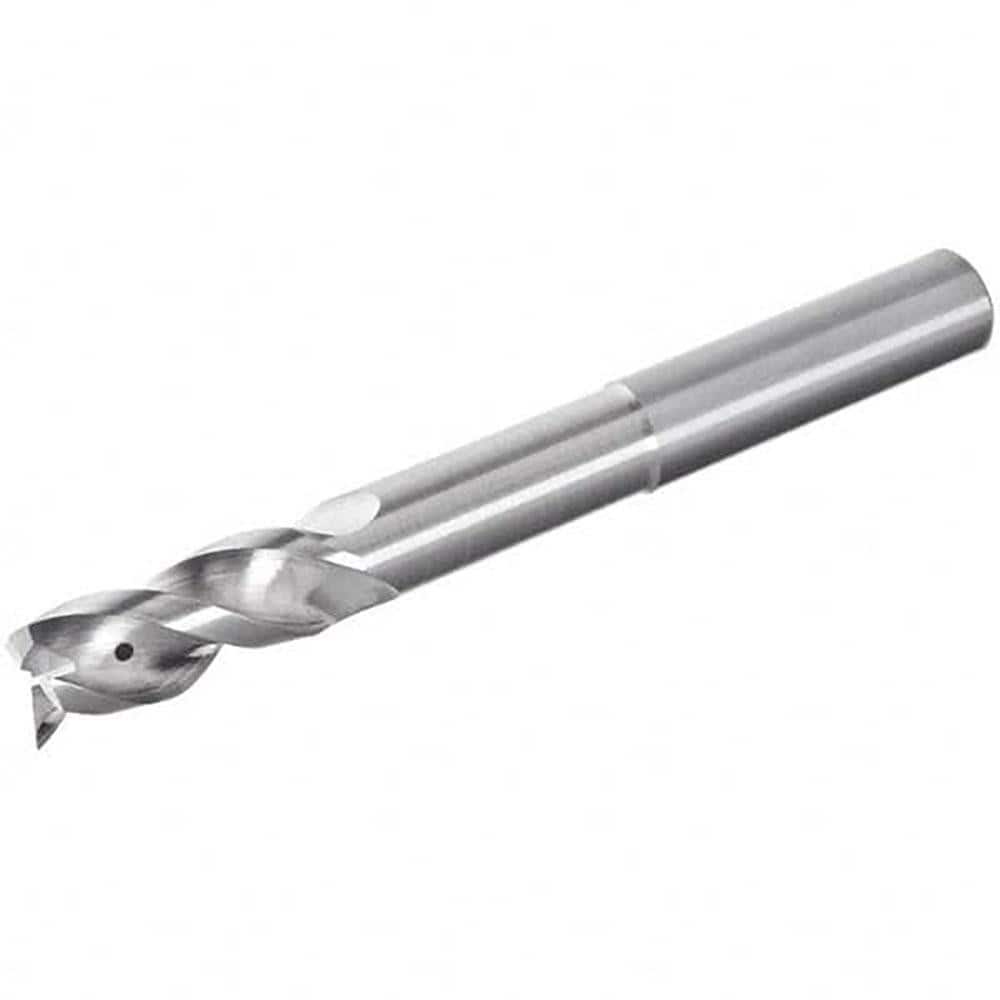

Corner Radius End Mill: 0.1575″ Dia, 0.3937″ LOC, 0.0079″ Radius, 3 Flutes, Solid Carbide Variable ° Helix, Bright/Uncoated, Corner Radius End
Item #: 77407609
Brand: Iscar
Model #: 5622972
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 10.00 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | Variable |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 57.00 |
| Minimum Helix Angle | 39.00 |
| Maximum Helix Angle | 41.00 |
| Mill Diameter Tolerance | -0.020000 to 0.038000 mm |
| Shank Diameter Tolerance | 0.000/-0.009 mm |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Fine Grain |
| Series | Chatter Free |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
