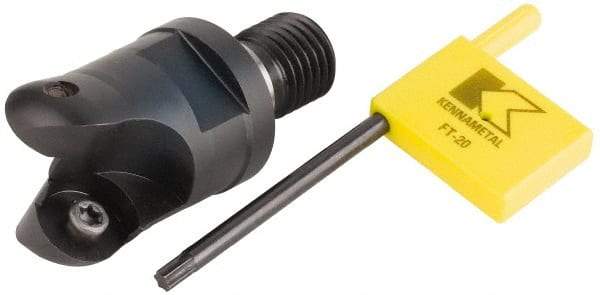

Kennametal - 31.75mm Cutting Diam, 1-1/4" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RDHX 1604M0S Insert, KDM Toolholder
Item #: 77340065
Brand: Kennametal
Model #: 2511467
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 31.75 |
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDHX 1604M0S |
| Toolholder Style | KDM |
| Series | KDM |
| Overall Length (mm) | 42.93 |
| Overall Length (Decimal Inch) | 1.6900 |
| Insert Diameter (mm) | 16.00 |
| Insert Diameter (Decimal Inch) | 0.6300 |
| Insert Holding Method | Screw |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 15.75 |
| Head Length (mm) | 42.93 |
| Head Length (Decimal Inch) | 1.6900 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | M16 |
