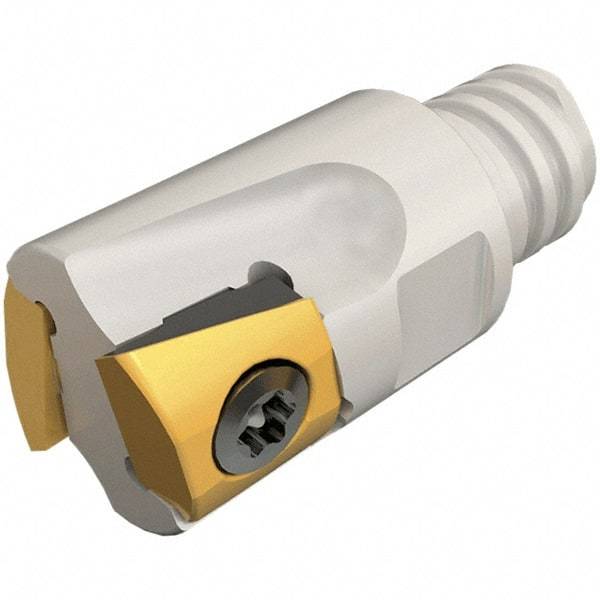

Iscar - 1/2" Cut Diam, 0.197" Max Depth of Cut, 0.63" OAL, Indexable Square Shoulder End Mill - T290 LN.T 0502 Inserts, T08 Modular Connection, 90° Lead Angle, Series SumoMill
Item #: 77316370
Brand: Iscar
Model #: 3105178
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Modular Connection |
| Modular Connection Size | T08 |
| Overall Length/Projection (Decimal Inch) | 0.6300 |
| Lead Angle | 90 |
| Series | SumoMill |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | T290 ELN-MM-05 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 0.6300 |
| Insert Compatibility | T290 LN.T 0502 |
