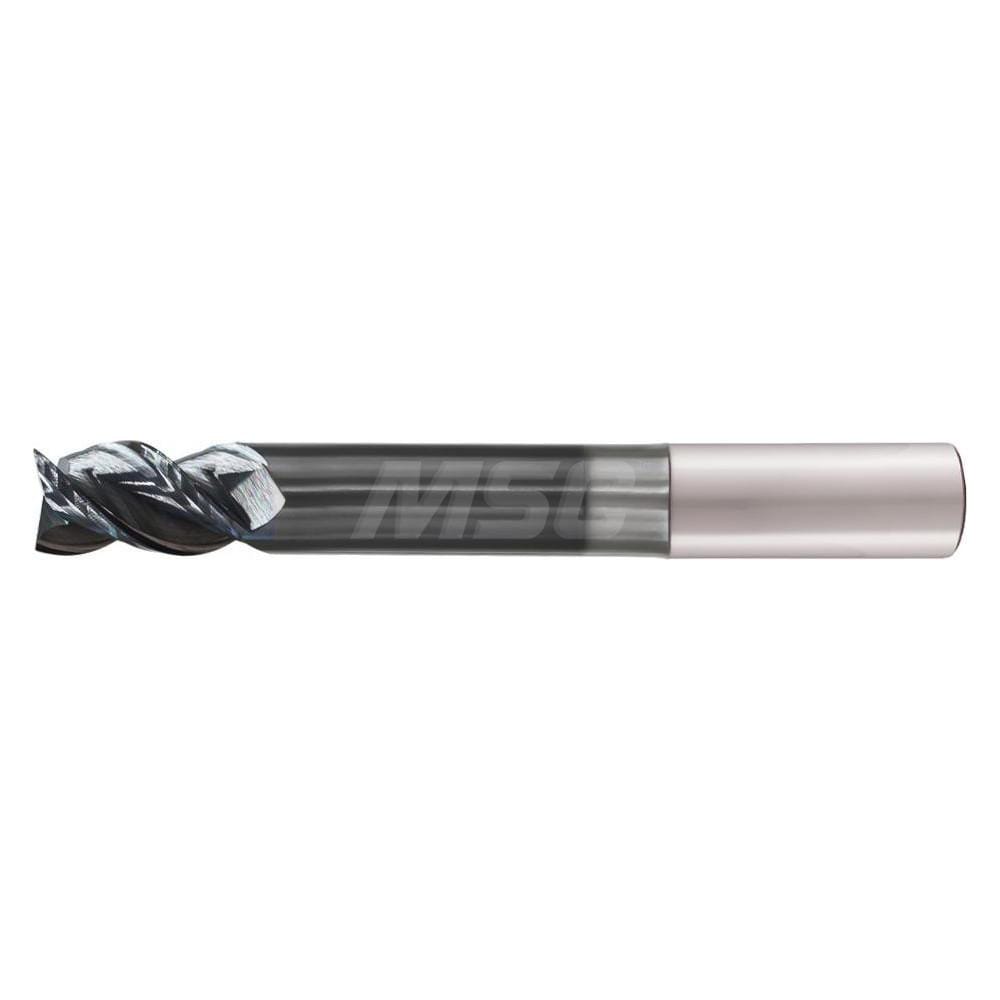

Corner Radius End Mill: 5/16" Dia, 1-1/4" LOC, 0.0150" Radius, 3 Flute, Solid Carbide
Item #: 20551859
Brand: Iscar
Model #: 3399223
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DLC |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0150 |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Coarse |
| Overall Length (Decimal Inch) | 4.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Shank Diameter (Inch) | 5/16 |
| Reach Length (Decimal Inch) | 1.2500 |
| Reach Length (Inch) | 1-1/4 |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Material Grade | Submicron |
| Series | ECAI-B3-EC |
| Material Application | Non-Ferrous Metal |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | ECAI-B3 .312-1.3CR015-4EC |
