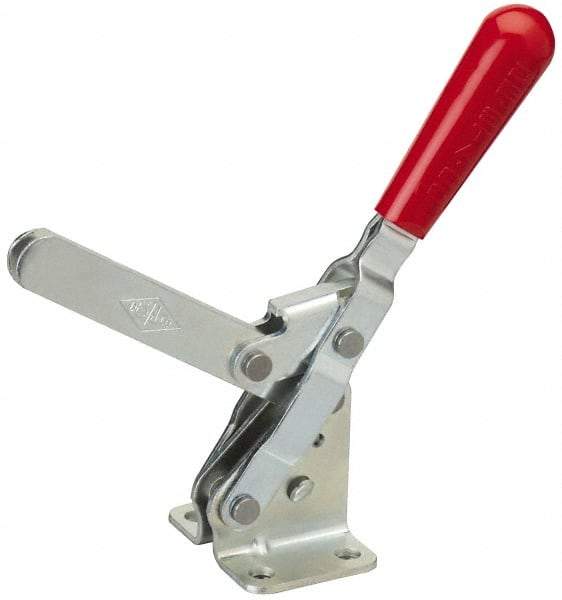

De-Sta-Co - 750 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 58° Handle Movement, 103° Bar Opening, U-Bar, Flanged Base, Electro-Plated Zinc, Stainless Steel
Item #: 76988765
Brand: De-Sta-Co
Model #: 210-USS
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
U-shaped bars are designed for spindle adjustments along the length of the holding bar. This enables the user to adjust the clamp for various sized workpieces.
Stainless steel has a higher heat tolerance and a higher resistance to corrosion than carbon steel, allowing use at higher temperatures. Can be used where a non-magnetic clamp is required.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (N) | 3340.00 |
| Holding Capacity (Lb.) | 750.00 |
| Length Distance Between Mount Holes (mm) | 32.00 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.26 |
| Width Distance Between Mount Holes (mm) | 44.96 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.7700 |
| Height Under Bar (mm) | 42.42 |
| Height Under Bar (Decimal Inch) | 1.6700 |
| Overall Length (mm) | 170.18 |
| Overall Length (Decimal Inch) | 6.7000 |
| Overall Height (mm) | 231.39 |
| Overall Height (Decimal Inch) | 9.1100 |
| Base Length (mm) | 48.01 |
| Base Length (Decimal Inch) | 1.8900 |
| Base Width (mm) | 65.02 |
| Base Width (Decimal Inch) | 2.5600 |
| Handle Style | Straight |
| Material | Stainless Steel |
| Handle Color | Red |
| Finish/Coating | Electro-Plated Zinc |
| Number of Mounting Holes | 4 |
| Mounting Hole Diameter (mm) | 8.38 |
| Mounting Hole Diameter (Decimal Inch) | 0.3300 |
| Front of Base To Tip Of Toggle Bar (mm) | 92.71 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.6500 |
| Bar Opening (Degrees) | 103.00 |
| Handle Movement (Degrees) | 58.00 |
| Maximum Mechanical Advantage | 7:1; 14:1 |
| Spindle Thread Size | 3/8-16 |
| Spindle Length (Inch) | 3-1/4 |
| Spindle Travel (mm) | 59.69 |
| Spindle Travel (Decimal Inch) | 2.3500 |
| Bar Width (Decimal Inch) | 0.7900 |
| Bar Width (mm) | 20.07 |
| Includes | (2) Flanged Washers; (2) Nuts; Spindle |
