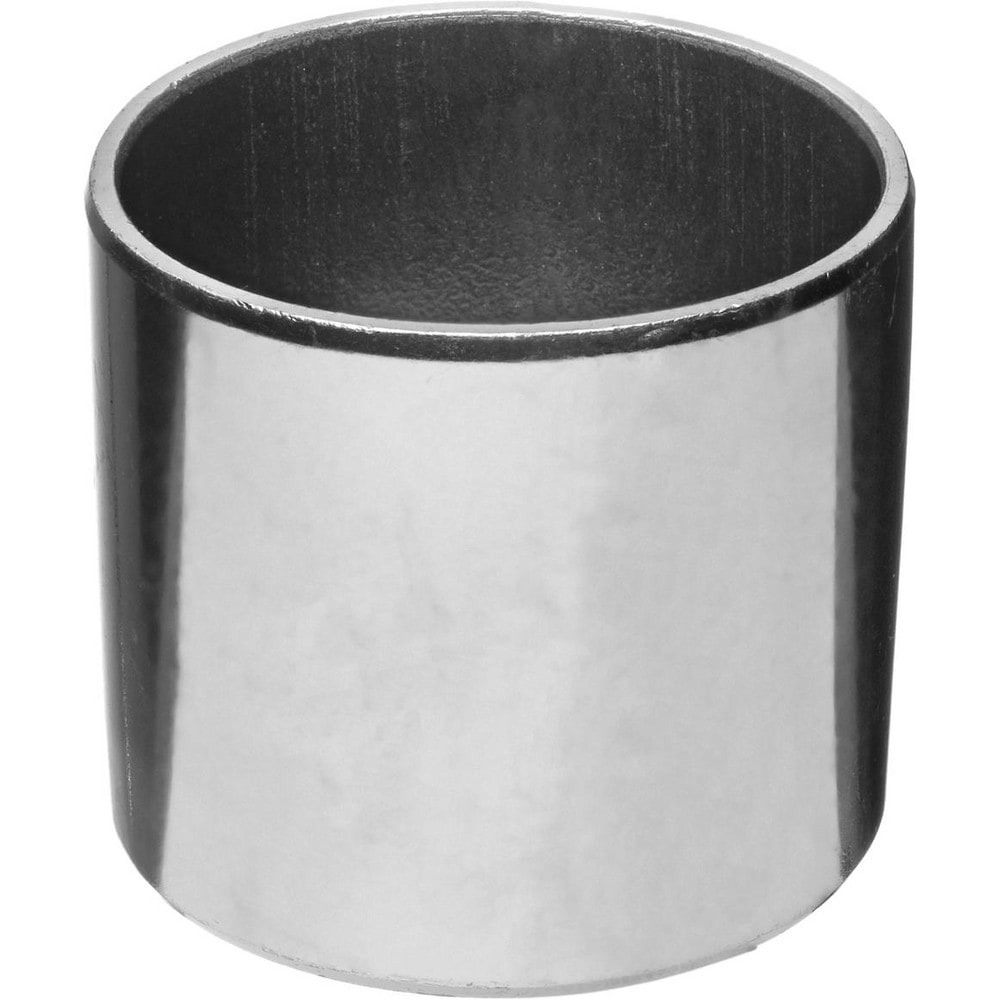

Sleeve Bearings; Bearing Type: Sleeve; Outside Diameter (Inch): 4-3/16; Outside Diameter (Decimal Inch - 4 Decimals): 4.1875; Inside Diameter (Inch): 4; Inside Diameter (Decimal Inch): 4.0000
Item #: 77002954
Brand: USA Industrials
Model #: ZUSAB-PB-998
Product Specifications
| Bearing Type | Sleeve |
| Outside Diameter (Inch) | 4-3/16 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 4.1875 |
| Inside Diameter (Inch) | 4 |
| Inside Diameter (Decimal Inch) | 4.0000 |
| Material | Steel |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Static Load Capacity | 2071987.19 |
| Dynamic Load Capacity | 2923960.790 |
| Maximum Pressure X Velocity | 406 |
| Bore Type | Plain |
| Lubricant Type | PTFE |
| Temperature Range | -320 to 530 Deg F |
| Housing Bore Limits Maximum | 4.1870 |
| Housing Bore Limits Mininum | 4.1860 |
| Inside Diameter (mm) | 101.6000 |
| Overall Length (mm) | 57.15 |
| UNSPSC Code | 31171509 |
| Country of Origin | United Kingdom |
