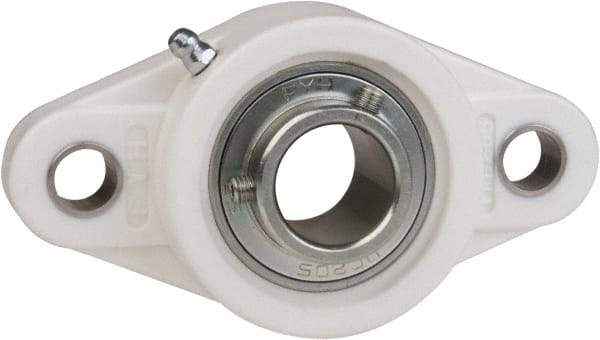

Value Collection - 1-1/4" ID, 5-13/16" OAL x 1-19/32" OAH 2-Bolt Flange Mounted Bearing - 2,540 Lb Static Cap, 4,383 Lb Dyn Cap, 4-39/64" Btw Mnt Hole Ctrs, 45/64" Base-to-Ctr Ht, Thermoplastic
Item #: 76904994
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2 Bolt Flange Mounted Bearing |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Inch) | 3.156 |
| Width (Decimal Inch) | 3.1563 |
| Overall Length (Inch) | 5-13/16 |
| Overall Length (Decimal Inch) | 5.8125 |
| Overall Height (Inch) | 1-19/32 |
| Overall Height (Decimal Inch) | 1.5938 |
| Static Load Capacity (Pounds) | 2540.00 |
| Dynamic Load Capacity (Pounds) | 4383 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 4.6094 |
| Distance Between Mounting Hole Centers (Inch) | 4-39/64 |
| Material | Thermoplastic Housing with Zinc Chromate Plated Bearing Insert |
| Distance Between Base And Center (Decimal Inch) | 0.7031 |
| Distance Between Base And Center (Inch) | 45/64 |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 7/16 |
| Bolt Size (Decimal Inch) | 0.4375 |
