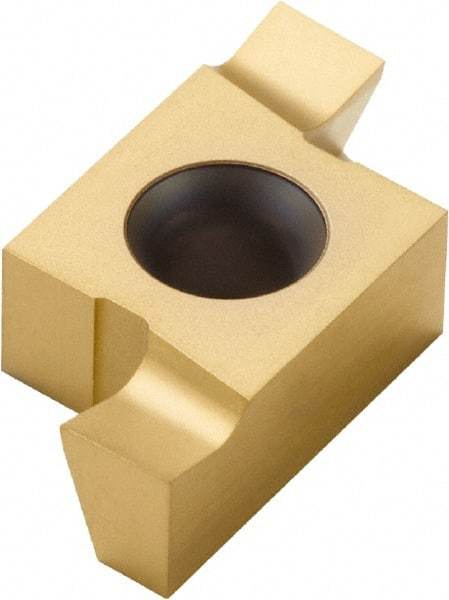

Seco - 206020EAL FA Grade CP500, 6mm Cutting Width Carbide Grooving Insert - 6mm Max Depth of Cut, Left Hand, TiAlN/TiN Finish
Item #: 76760230
Brand: Seco
Model #: 26783
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 20EAL |
| Insert Size | 2060 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Material Grade | Micrograin |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Insert Seat Size | 20 |
| Chipbreaker | FA |
| Multi-Use Tool | No |
| Coating Process | PVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | Snap Tap |
| Overall Width (mm) | 12.70 |
| Overall Width (Decimal Inch) | 0.5000 |
