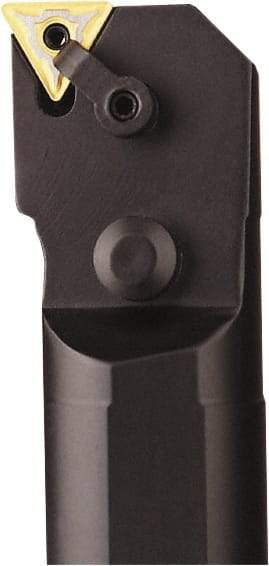

Seco - 2.062" Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-MTFN Indexable Boring Bar - TNMG 432 Insert, Pin & Clamp Holding Method
Item #: 76742188
Brand: Seco
Model #: 41094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTFN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 2.0620 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | TNMG 432 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative |
| Lead Angle | 90 |
| Center to Cutting Edge (Decimal Inch) | 1.0310 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Rake Angle | -5 |
| Complete Insert Compatibility | TNMG 432-M3; TNMG 432-M5; TNMG 432-MF2; TNMG 432-MF3; TNMG 432-MF4; TNMG 432-MR4; TNMG 432-MR6; TNMG 432-MR7 |
| Toolholder Material | Steel |
