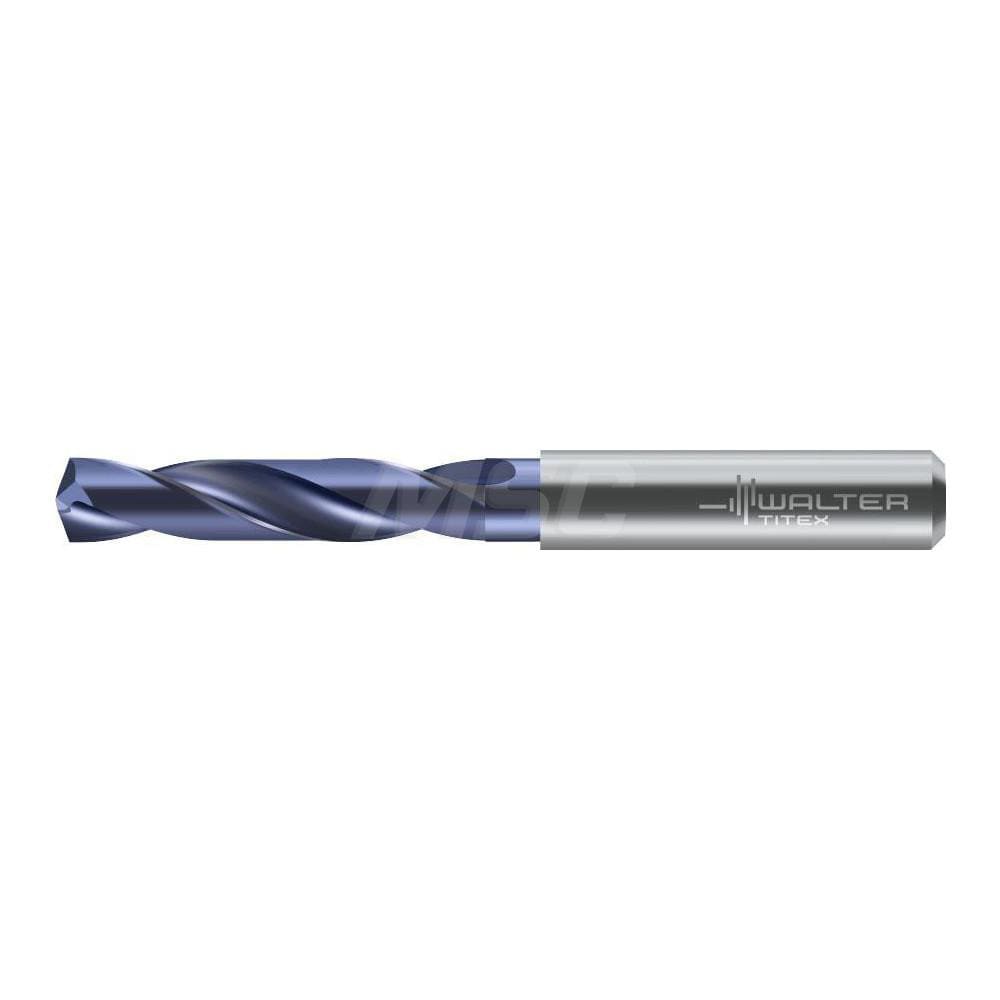

Screw Machine Length Drill Bit: 6.20 mm Dia, 140 deg Point, Solid Carbide
Item #: 36528255
Brand: Walter-Titex
Model #: 6618100
Product Specifications
| Drill Bit Size (mm) | 6.20 |
| Drill Bit Size (Decimal Inch) | 0.2440 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiNAl |
| Number Of Flutes | 3 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | No |
| Primary Workpiece Material | Cast Iron; Steel |
| Point Type | Special |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Series | DC150-03-A0 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.7320 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 1.13 |
| Drill Point Length (Decimal Inch) | 0.0444 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.7320 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.50 |
| UNSPSC Code | 23241635 |
