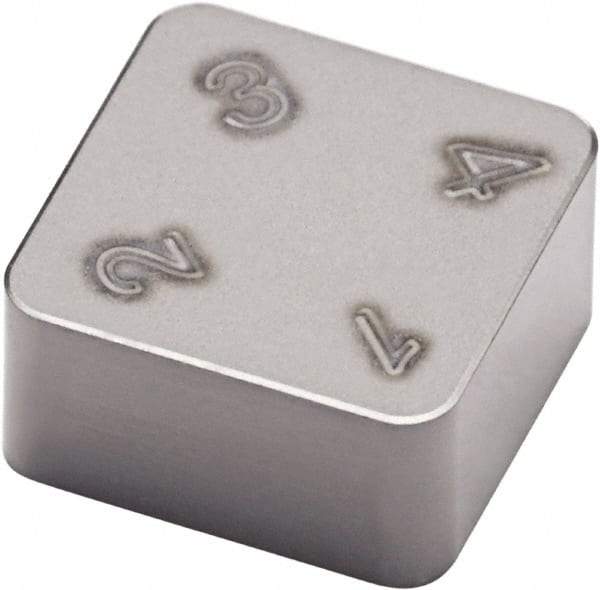

Seco - SNMN423 Grade CBN300 PCBN Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 1/8" Thick, 1/16" Corner Radius
Item #: 76700996
Brand: Seco
Model #: 97865
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMN |
| Insert Size | 423 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | CBN300 |
| Coating | Uncoated |
| Relief Angle | 0 |
| Included Angle | 90 |
| Series | Secomax |
| Insert Holding Method | Clamp |
| Shape | Square |
