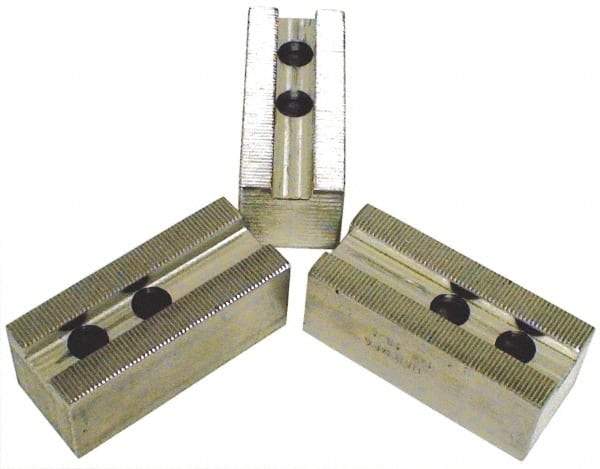

H & R Manufacturing - 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Aluminum, 1.181" Btw Mount Hole Ctrs, 5-1/4" Long x 2" Wide x 3-1/2" High, 0.827" Groove, 16mm Fastener
Item #: 76554690
Brand: H & R Manufacturing
Model #: HR-112-3.5-A
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Aluminum |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 12 |
| Minimum Compatible Chuck Diameter (Inch) | 12 |
| Overall Height (Inch) | 3-1/2 |
| Groove Width (Decimal Inch) | 0.8270 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.1810 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 16 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 2 |
| Overall Length (Inch) | 5-1/4 |
| Material Grade | 6061 |
