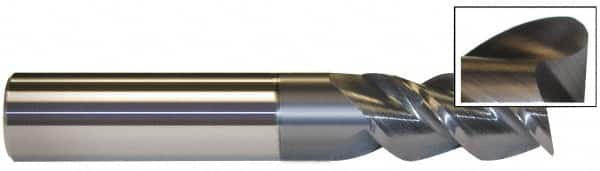

Accupro - 1" Diam 3 Flute Solid Carbide 0.03" Corner Radius End Mill
Item #: 76491232
Brand: Accupro
Model #: 12179346
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Inch) | 1-1/8 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 40.00 |
| Variable Index | No |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.0002/-0.0008 |
| Corner Radius Tolerance (Decimal Inch) | +/-0.0015 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | No |
